DESCRIPTION

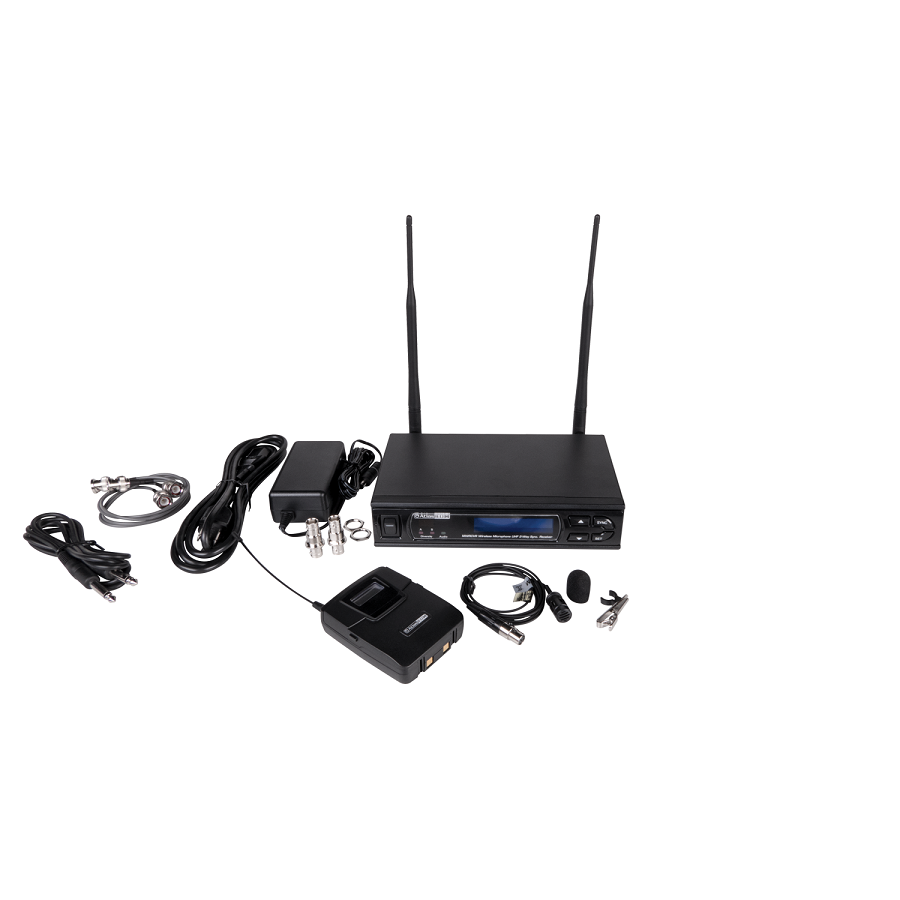

The AtlasIED MW100BP-OE is a complete wireless microphone kit that includes a wireless receiver (MWRCVR), beltpack wireless transmitter (MWBPT), and lavalier microphone (MWLM) as well as the necessary antennas, cables, and power supply for proper functionality in a variety of installations including classrooms, conference rooms, lecture halls, and live presentations. The MWRCVR receives signal from the MWBPT via the 25MHz frequency band, where any one of 100 usable frequencies can be assigned to MWRCVR and MWBPT, via patented 2-way technology that ensures quality of data transmission between the two units.

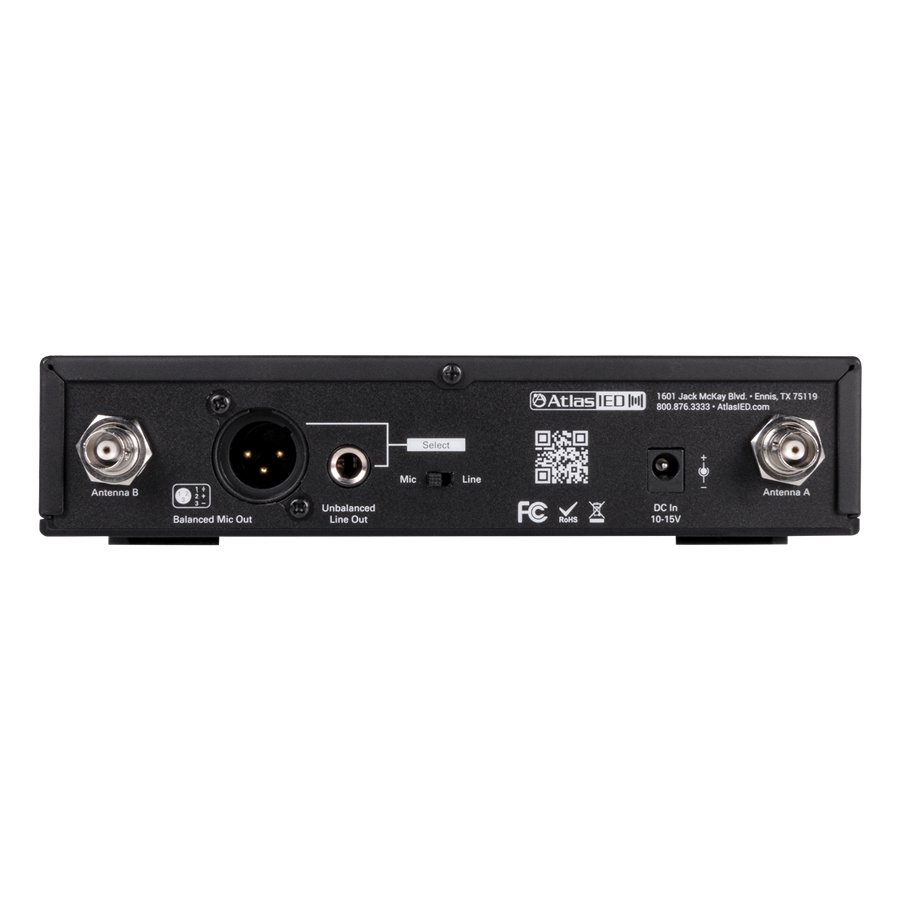

The MWRCVR includes a balanced XLR output as well as an unbalanced 1/4" line output that can be connected to a variety of devices including AtlasIED power amplifiers. A switch allows the user to choose between mic or line input and the dual antennas ensure quality reception wherever the unit is located.
The MWBPT is a beltpack wireless transmitter that connects to the MWLM lavalier microphone and that can be used with either two standard alkaline or rechargeable NiMH AA batteries. The MWHBPT can provide up to 16 hours of usage when using rechargeable NiMH batteries. The integrated LCD displays channel, frequency, and battery level for easy identification when pairing the unit to the receiver.
MWRCVR Specifications
Frequency Range UHF 566MHz - 585.8MHz
Switching Bandwidth 25MHz
Switchable Frequencies 100
Display Type LCD
Operating Range 100m Direct Sight
Sensitivity -95dBm
Signal to Noise Ratio > 110dB
THD < 0.5%
Power Supply 100-240V AC, 12V DC/1.6A
Dimensions 7.87" x 5.91" x 1.73" (200mm x 150mm x 44mm)
Weight 1.39 lbs (0.63kg)
FEATURES

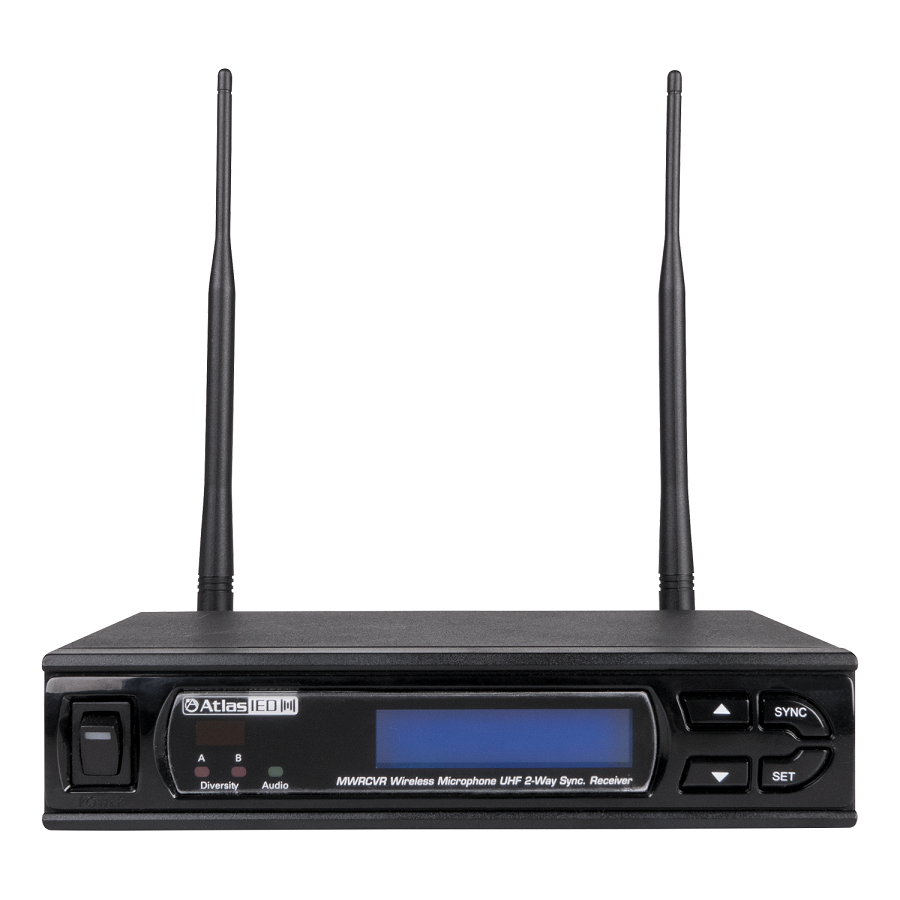

MWRCVR Receiver
Multi-function LCD display for channel / frequency, volume level, and signal strength
Patented technology for 2-way data transfer between transmitter and receiver
100 frequencies available through the 25MHz signal band
Dual antennas reduce distortion
IR sensor for connection to wireless microphone
Selectable mic or line output

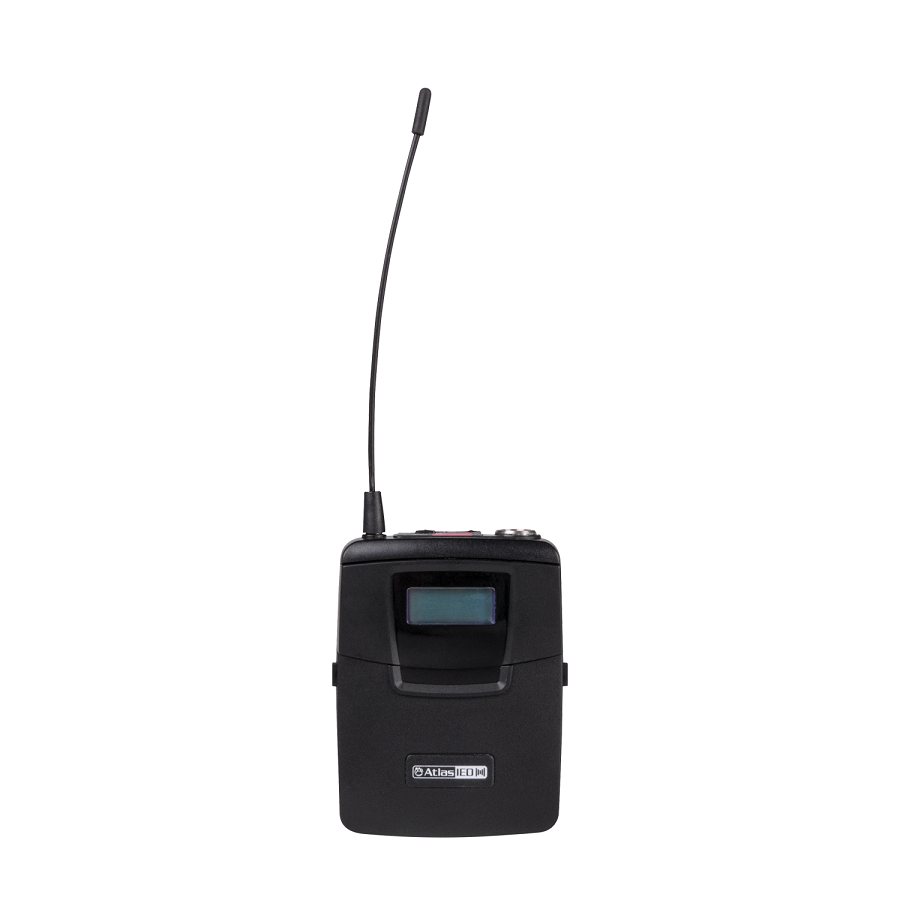

MWBPT Beltpack Wireless Transmitter
Multi-function LCD display for channel / frequency, battery level indicator, Alkaline / NiMH battery selection
1/4 wave whip antenna
High and low impedance gain controls
Requires 2 AA batteries to operate
Up to 16 hours operating time
Detachable Belt Clip
Standard 4-Pin Mini XLR Connector
35mW maximum transmission power
